ChovACUSTIC 65 FIELTEX is a specialized multilayer product designed for the effective absorption and reduction of sound transmission. Its structure features a 16 mm thick non-woven layer thermally bonded to a 4 mm high-density sheet. This unique composition provides advanced sound insulation and exceptional flexibility, making it ideal for a wide range of soundproofing applications.
Key Technical Specifications
- Material Thickness: 20 mm
- Average Weight: 7.4 kg/m²
- Thermal Conductivity: 0.032 W/mK
- Fire Resistance: Class F
- Rainwater Pipe Sound Insulation: Rw = 57 dBA
- Sheet Dimensions: 5.15 m x 1 m
- Quantity per Pallet: 66 m²
Note: The material must be stored in a dry environment and kept upright to maintain its quality.
Advantages and Features
- High Density and Elasticity: Its robust structure ensures durability and excellent soundproofing performance.
- Porous Non-Woven Material: Enhances sound absorption, reducing airborne noise propagation.
- Innovative Multilayer Composition: Effectively absorbs and reduces sound vibrations across a wide frequency range.

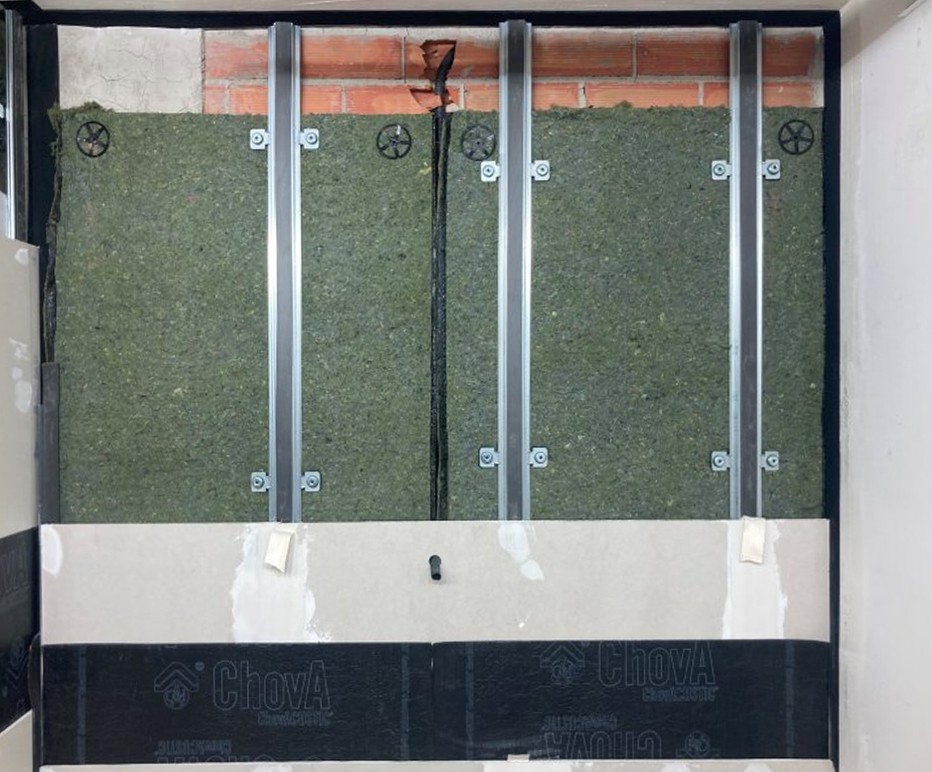

Installation Steps
- Material Preparation: Cut the ChovACUSTIC 65 FIELTEX sheets to the desired dimensions using appropriate tools.
- Placement: Attach the material to the structure and drill 8 mm diameter holes.
- Securing: Drill five holes per square meter with a minimum depth of 4 cm.

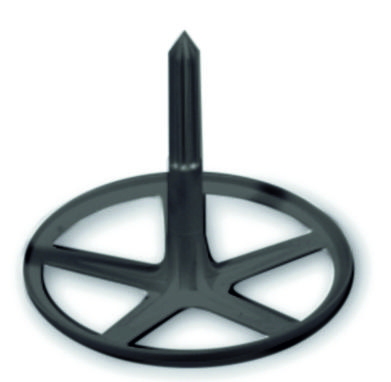

- Pin Fixation: Insert ChovAFIX pins using a hammer.
- Sheet Overlap: Ensure the sheets overlap to avoid gaps.
- Joint Sealing: Apply ELASTOBAND sealing tape to all joints for airtight application.
Applications
- Commercial Spaces: Reduces noise pollution in bars, restaurants, and nightclubs.
- Support for Traditional Constructions: Enhances insulation in single-brick partition walls.
- Thin Renovations: Ideal for spaces where thickness is a limiting factor.
- Machine Rooms and Shared Areas: Perfect for noise reduction in technical facilities and communal spaces.
Summary
The ChovACUSTIC 65 FIELTEX stands out as a top-tier solution for soundproofing, combining ease of use with high performance. Its innovative composition and versatility make it the ideal choice for both professional and residential applications. For optimal results, follow the installation instructions and ensure proper storage.
Stop Sound is here to assist you with any questions or technical clarifications.
