ANTIVIBRATION PROTECTION
ISOLMER®
Mixed-Cell Polyurethane Foam Panels for Vibration and Shock Absorption
Key Advantages
ISOLMER® mixed-cell polyurethane panels are specifically designed for vibration and shock isolation in structures near railway tracks, structural components, and machine foundations. They are ideal for applications such as CNC machining centers, printing presses, food processing equipment, and laboratory installations. These panels ensure superior performance in vibration insulation, meeting the highest technical standards.
The Fall Report
Technical Specifications
- Excellent insulation and damping properties
- Low natural frequencies, reaching down to 6 Hz
- Available in 12 mm and 25 mm thicknesses
- Exceptional long-term elasticity
- Strong mechanical durability
- Precisely engineered for accurate load calculations
No risk Trial
Splashproof Design
Additional Benefits
The ISOLMER® range includes mixed-cell polyurethane panels in multiple thicknesses and finely tuned load capacities, offering a reliable and cost-efficient solution for standard and low-frequency vibration control applications.
Black Color
ISOLMER ®-11
Static Load up to 0.011 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-16
Static Load up to 0.016 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-11
Static Load up to 0.011 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-16
Static Load up to 0.016 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-26
Static Load up to 0.026 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-40
Static Load up to 0.040 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-26
Static Load up to 0.026 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-40
Static Load up to 0.040 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-55
Static Load up to 0.055 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-65
Static Load up to 0.065 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-55
Static Load up to 0.055 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-65
Static Load up to 0.065 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-110
Static Load up to 0.110 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-170
Static Load up to 0.170 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-110
Static Load up to 0.110 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-170
Static Load up to 0.170 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500

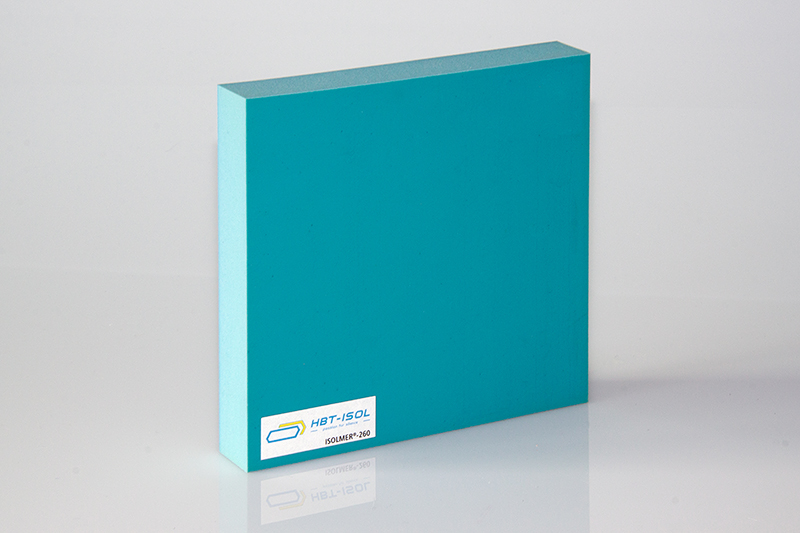

ISOLMER ®-260
Static Load up to 0.260 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-400
Static Load up to 0.400 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-260
Static Load up to 0.260 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-400
Static Load up to 0.400 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-650
Static Load up to 0.650 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-950
Static Load up to 0.950 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-650
Static Load up to 0.650 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-950
Static Load up to 0.950 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-1500
Static Load up to 1.500 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-2000
Static Load up to 2.000 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-1500
Static Load up to 1.500 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
ISOLMER ®-2000
Static Load up to 2.000 N/mm2
Thickness mm 12.5 and 25
Length x width mm 1000 x 500
